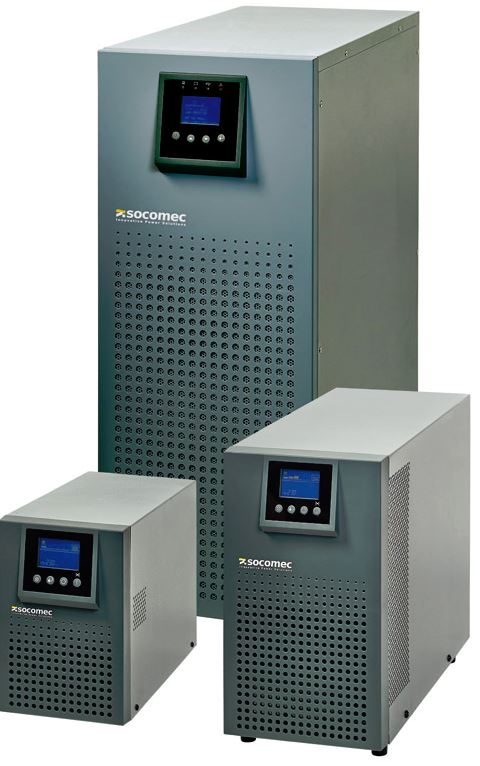

ITYS 3kVA Tower LCD UPS

ITYS 3kVA Tower LCD UPS

Regular price $2,182.77 AUD
Regular price $3,358.10 AUD Sale price $2,182.77 AUD
Sale Sold out

34% OFF

Taxes included.
Quantity
Buy Now Pay Later with
🚚

Tracked Express Shipping available for $29.95

📦

Estimated delivery: 3–7 business days Australia-wide

👍

12 Month Warranty' in your brand colour

Description

Socomec : ITYS 3kVA Tower LCD UPS

The ITYS 3kVA is highly reliable protection for IT and critical industrial applications. It is the solution for professional workstations, server and corporate networks, storage systems, industrial automation, security systems and telecom systems.

ÂA

Features

High protection and availability

âA‚¬A¢ True online double conversion technology (VFI) assures high availability and total load protection.
A¢A‚¬A¢ Constant output voltage and frequency regulation makes ITYS compatible with different applications, operating environments and generator sets.
A¢A‚¬A¢ Automatic bypass supplies the loads in the event of overloads or faults.

Robust and versatile

âA‚¬A¢ Compact tower UPS system saves space in the operating environment.
A¢A‚¬A¢ No particular configuration on first startup.
A¢A‚¬A¢ Easy connections via IEC 320 sockets or terminals.
A¢A‚¬A¢ Wide input voltage tolerance limits the switchovers to battery mode prolonging the battery life.

Specifications

  • Online Double Conversion
  • 3000VA/2400W
  • Tower only
  • USB + RS232 comm's port & cable,
  • OptionalÂA  SNMP card available
  • 4 x 10A IEC outlets + output terminals for hardwire, includes 3 pin Aust input cord + 1 x Aust output conversion cord & 1 x IEC cord

Rear view connections


ÂA

ÂA

1. USB serial port
2. RS232 serial port
3. EPO (Emergency Power Off)
4. Dry contact interface (DB9)
5. Slot for optional communication
boards(1)
6. Manual bypass
7. Input protection (thermal breaker)
8. Battery fuse holder
9. Castor wheel with security lock
10. Input, output and external battery
terminal board
11. Connection for modular battery
extension
12. Output sockets (IEC 320)
13. Input protection
14. Input socket (IEC 320)
15. Output terminals

ÂA

(1) Dry contact interface or WEB / SNMP network adapter.

Technical data

ÂA

ÂA  ITYS - UPS
Model with internal batteries ITY2-
TW010B
ITY2-
TW020B
ITY2-
TW030B
ITY2-
TW060B
ITY2-
TW100B
Model without internal batteries ITY2-
TW010LB
ITY2-
TW020LB
ITY2-
TW030LB
ITY2-
TW060LB
ITY2-
TW100LB
Sn 1000 VA 2000 VA 3000 VA 6000 VA 10000 VA
Pn 800 W 1600 W 2400 W 5400 W 9000 W
Input / output 1/1
Input
Rated voltage 230 V
Voltage tolerance 110ÃA·300 V 176ÃA·276 V
Rated frequency 50/60 Hz
Power factor 0.98
Output
Rated voltage 208/220/230/240 V
Voltage tolerance ÂA± 2% ÂA± 1%
Rated frequency 50/60 Hz (45ÃA·55 Hz / 54ÃA·66 Hz)
Overload Up to 150 % for 10 seconds Up to 150 % for 1 minute
Crest factor 3:1
Connections 3 x IEC 320 (C13) 6 x IEC 320 (C13) 4 x IEC 320 (C13) + terminals terminals
Batteries
Type sealed lead-acid maintenance free - expected life 3/5 years
Voltage 36 V DC 96 V DC 240 V DC
Back-up time @75% of rated load (models with internal batteries) PF 0.7 10 min 17 min 9 min 13 min 9 min
Battery charger (models without internal batteries) 8 A 4 A
Communication
Interfaces RS232 - USB RS232 - USB - Dry contact
Ethernet adapter NET VISION (TCP/IP & SNMP) optional card
Local communication software Local View
Efficiency
Online mode up to 92âA‚¬A€°%
Environment
Ambient service temperature 0A‚A°C to +40A‚A°C (15A‚A°C to 25A‚A°C for maximum battery lifetime)
Relative humidity < 95âA‚¬A€°% non-condensing
Maximum altitude 1000 m without de-rating
Noise level at 1 m < 50 dBA < 55 dBA
UPS cabinet
Dimensions W x D x H 145 x 400 x 220 mm 192 x 460 x 347 mm 260 x 550 x 708 mm
Weight (models with internal batteries) 13 kg 31 kg 80 kg 84 kg
Weight (models without internal batteries) 7 kg 13 kg 25.5 kg 29.5 kg
Degree of protection IP20
Standards
Safety EN 62040-1
EMC EN 62040-2
Product certification CE

ÂA

ÂA  ITYS - Modular Battery Extension
Model ITY2-
EX010HB
ITY2-
EX030HB
ITY2-
EX100HB
Number of strings 1 1 1
Model ITY2-
EX010B
ITY2-
EX030B
ITY2-
EX100B
Number of strings 2 2 2

Warranty

2-year limited warranty.
